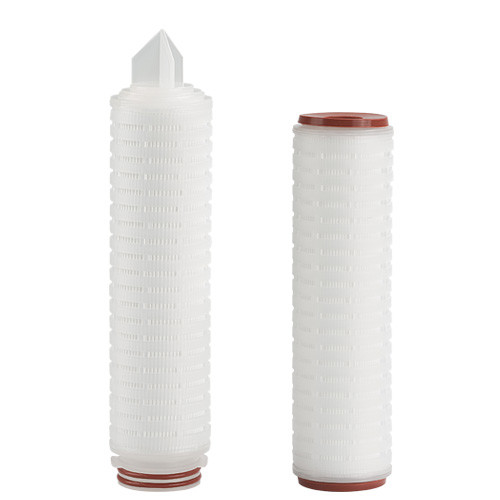

Pleated polyester filter cartridge with 0.3μm/0.5μm/1μm/3μm/5μm micron in high viscosity working environment
General Description:
Microporous pleated filter element, the main filter material is : Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.
Specifications:
| Item | Technical Parameters |
| Micron | 0.3μm,0.5μm,1.0μm,3.0μm,5.0μm |
| Filtration area | 0.4-0.7m² |
| Filter Medium | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Core/Cage/End Cap | Polypropylene (PP) |
| Outside diameter | 2.7" (68.5mm) |
| Max. operating differential pressure | ΔP≤0.35MPa at 25℃ |
| Max. operating differential pressure (reverse direction) | ΔP≤0.28MPa at 60℃ |
| Max. operating temperature | 80℃(Stainless steel support is recommended for temperature exceeds 50℃) |
| Sterilization temperature | 30 minute cycles @121℃ |
| Max. operating pressure | 4.0bar/21℃ |
| 2.4bar/80℃ |
Ordering info:
| Series | Filter Fineness | Length | Connection Type | Seal Material |
| PPM | 0030=0.3μm | 05=5" | C1=226/tripod | E=EPDM |
| PPM | 0050=0.5μm | 10=10" | C3=222/tripod | S=silicone rubber |
| PPM | 0100=1.0μm | 20=20" | C5=222/flat head | V=fluororubber |
| PPM | 0300=3.0μm | 30=30" | C6=226/flat head | P=FEPsleeved |
| PPM | 0500=5.0μm | 40=40" | C9=the two end | |
Products details:
High-quality raw material with precise designs. Pleated material combines deep filtration technology and pleated technology to promising filtration efficiency. Skeleton is using PP material with hollow-caved design, through testing, it meet the requirements of working conditions.
Certificate document:

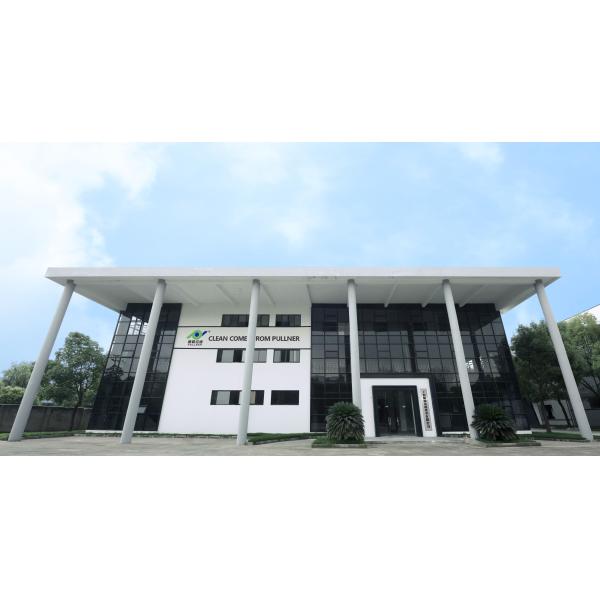

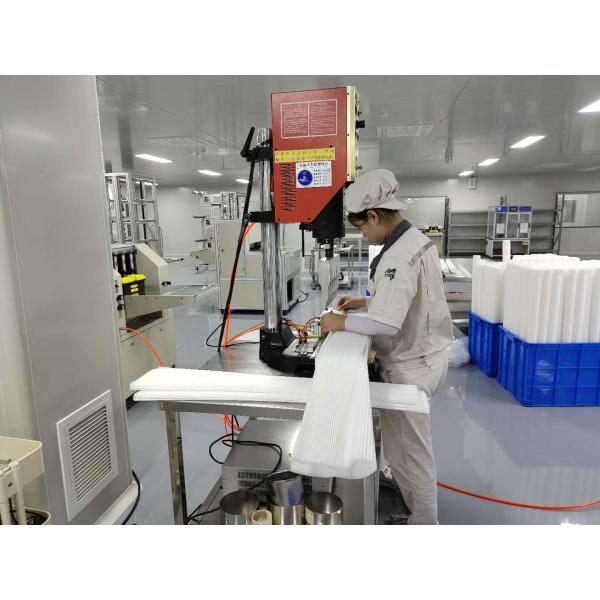

Our Factory:
FAQ
1. MOQ
As manufacturer, 1 piece is acceptable.
2.Payment Term
Flexible payment method. We can accept L/C, T/T, Western Union, Money Gram, etc.
3.Certification:
We had ISO9001, FDA, certificate, filters test report.
4.Shipping :
Courier service: TNT, DHL, FedEx, UPS, etc.
By sea, by Air, according to customer's request.
5.Sample:
FREE, in 1-3 working days after confirmed.
6. Delivery time:
General 5-10days.
